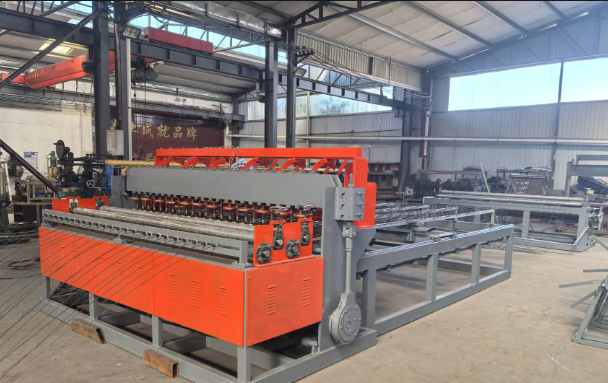

Fully Automatic 3D Wire Mesh Welding Machine Customized With Root

Ask Lasest Price
Brand Name :	APBWR
Model Number :	KY-RWM
Certification :	ISO9001
Price :	$5000-50000
Payment Terms :	L/C,T/T
Supply Ability :	1000+ /year
Delivery Time :	14-21DAYS

Add to Cart

Product Details
Company Profile

Fully Automatic 3D Wire Mesh Welding Machine Customized With Root

Fully Automatic 3D Wire Mesh Welding Machine with Root

1.Wire Mesh Welding Machine Product Description

1)This 3D fence mesh welding machine production line is developed and produced by the Chinese technical team and European engineers combined with the use experience of customers. The whole production line is very advanced and each system has been greatly improved.

2)The line wire feeding system is very precise, and the length range can be 75-2500 mm, the pull mesh system, mesh conveying system and mesh bending system are controlled by different servo motors, it can greatly improve the production speed.

2.Wire Mesh Welding Machine Features

1)Core advantage:

The bending system adopts high-speed bending machine, and the upper and lower molds move at the same time for high-efficiency production. The mesh stacking system adopts intelligent robot stacking system. Its advantage is that it can accurately and quickly place the mesh in order, reduce labor and save cost.

2)Mechanical advantages:

(1)The mesh length (fence height) can be adjusted arbitrarily 75-2500 mm.

(2)Vibration device is added to the cross wire feeding system to prevent wire winding.

(3)The line wire and the cross wire are precise positioning, mesh panel is flat ,mesh hole is standard.

(4)Cross wire spacing adjusted through the touch screen, different mesh sizes can set in the same mesh.

(5)The upper and lower dies of the bending machine move at the same time to save time.

(6)We can easily adjust the welding current when we need to weld different wire diameters.

(7)We can set the output and stop the machine automatically after the mesh production finished.

(8)Wire feeding,mesh welding, mesh bending, mesh stacking running together.High production efficiency.

(9)Robot mesh stacking system can accurately and quickly place the mesh, saving labor

3.Wire Mesh Welding Machine Specification

Model	KY-RWM-2000	KY-RWM-2500
Mesh width	Max.2000 mm	Max.2500 mm
Mesh hole size	50-300 mm	50-300 mm
Wire diameter	3.0-5.0 mm	3.0-5.0 mm
Welding speed	40-80 Times/min	40-80 Times/min
Transformer	125KVA*5 (water-cooling)	125KVA*6 (water-cooling)
Dimensions	12 X 2.5 X 1.85 m	12 X 3.0 X 1.85 m
Weight	15000 KG	16000 KG

4.Detailed Images:
