| Brand Name : | APBWR |
| Model Number : | BWR-SLW54C |
| Price : | $5000-50000 |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1000+ /year |
| Delivery Time : | 14-21 Days |
| Certification : | ISO9001 |

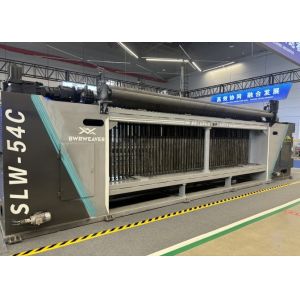

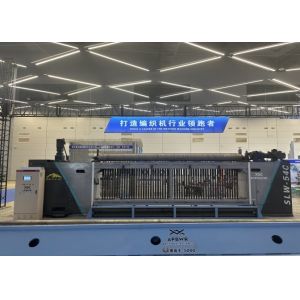

5 Axis Linked Auto Gabion Machine High Durability BWR - SLW54C
Auto Gabion Machine General Information
Our 5 - axis linked stone cage net machine is a patented product that combines advanced technology and innovative design to bring you an unparalleled production experience. It is specifically engineered to meet the high - demand needs of the stone cage net manufacturing industry.
Auto Gabion Machine Key Features
High Efficiency,With its state - of - the - art 5 - axis linkage
technology, this machine can significantly improve the production
speed. It can produce more than 10,000 square meters of stone cage
nets per single shift, greatly enhancing the overall productivity
and helping you save time and cost.
Simple Operation,The machine is designed with simplicity in mind.
The operation interface is intuitive, and the process is easy to
understand, even for operators with limited experience. The control
system is user - friendly, allowing for quick and smooth operation,
reducing the learning curve and potential errors.
Precise Control,Thanks to the advanced control system, the 5 - axis
linked stone cage net machine can achieve precise control over
every production process. It can accurately adjust the mesh size,
wire tension, and other parameters, ensuring the quality and
consistency of the stone cage nets produced.
Low Noise,We understand the importance of a comfortable working
environment. Therefore, this machine is equipped with noise -
reduction technology, which effectively reduces the working noise.
It can operate quietly without causing much interference to the
surrounding environment, providing a more pleasant working
atmosphere for the operators.
Easy Maintenance,The machine's structure is designed for easy
maintenance. All key components are accessible, and the maintenance
process is straightforward. Regular maintenance can be carried out
quickly and efficiently, minimizing downtime and ensuring
continuous production.
Auto Gabion Machine Special Systems
Automatic Oil Supply System,The automatic oil supply system ensures
that all moving parts of the machine
Auto Gabion Machine Performance Parameters
| Parameter | Specification (EN) | Description (EN) |
| 编织幅宽范围 Weaving Width | 5200 mm- | Standard effective weaving width |
| 丝径范围 Wire Diameter Range | 1.5–4.5 mm (varies by spec) | Varies depending on weaving range and specification |
| 网孔规格 Mesh Size Specification | 6.6, 6.8, 7, 7.2, 8.4, 8.6, 8.8, 9, 9.2, 9.4, 10.2, 10.6, 11.6 mm | Customizable to meet various gabion requirements |
| 扭绞方式 Twisting Method | 3 twists, 5 twists, long or short pitch | Available in 3-twist, 5-twist, long or short twist patterns |
| 运行速度 Operating Speed | Approx. 70 cycles/min | Actual speed varies based on mesh width and wire diameter |
| 最大产量 Maximum Output | 320 m/hour | Theoretical maximum output, varies with operating conditions |
| 电机功率 Motor Power | 15 KW × 1, 11 KW × 4 | 1 main motor and 4 auxiliary motors |
| 自动暂停系统 Auto Pause System | ✔ Yes / □ No | Stops automatically in case of fault or wire breakage |
| 自动供油系统 Auto Lubrication System | ✔ Yes / □ No | Automatic lubrication to reduce maintenance needs |
| 整机尺寸 Machine Dimensions | 9.79 × 1.40 × 3.07 m | Length × Width × Height |
| 整机净重 Net Weight | 18.5 tons | Net weight (excluding packaging) |
| 数控系统 CNC System | Self-developed electronic cam system | Customizable based on customer requirements |
|
|
