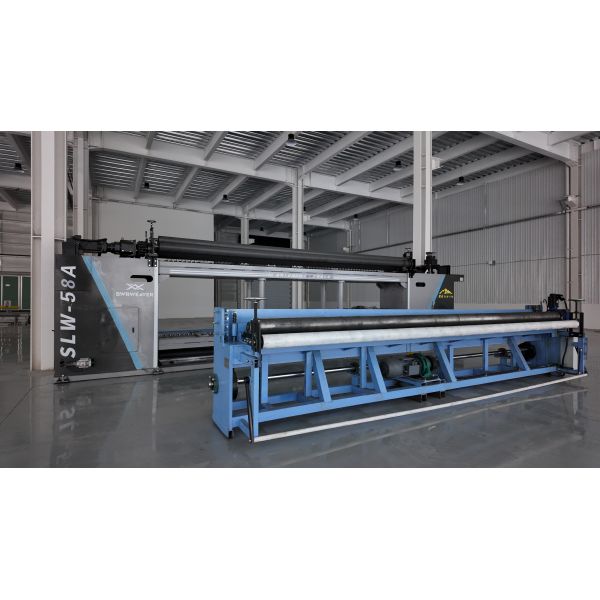

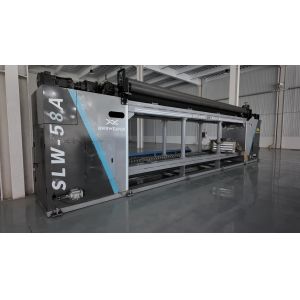

3 Axis Linked Gabion Box Machine Easy Operate SLW54A
1.Gabion Box Machine Description:
The stone cage net machine is a professional device for processing stone cage nets. The produced stone cage nets are widely used in petrochemical, agricultural construction construction industries for reinforcement, protection, as protective cages, boiler covers for cold and heat resistance, floor concrete slab reinforcement, and can also be used to make poultry fences, fish fences, children's playground fences and home decorations, etc. It has a strong structure, a flat surface, and has good corrosion resistance, oxidation resistance and other characteristics. them, heavy-duty stone cage nets can be used to control and guide rivers and floods.
2.Gabion Box Machine Working Process:
Wire Preparation: Wires are fed, straightened, and cut to required lengths.
Mesh Creation: Wires are welded or woven into hexagonal or rectangular grids.
Cutting & Shaping: Panels are cut to size, with edges shaped for assembly.
Automated Assembly: Panels are folded into box structures, with spiral connectors or rings added for stability.
3.Gabion Box Machine Technical Specifications:
Wire Diameter: 1.5-4.5mm.
Mesh Sizes: Adjustable (e.g., 60x80 mm to 130x160 mm).
Production Speed: Up 60 times per minute (producing 30 meshes), depending on the model and complexity of the product.
Power Requirements: The machine is driven by five servo motors, including four 11kw motors and one 15kw motor.
4.Basic Model Specification Of Gabion Box Machine
Parameter | Specification | Description |
Weaving Width | 5200 mm | Standard effective weaving width |
Wire Diameter Range | 1.5–4.5 mm (varies by spec) | Varies depending on weaving range and specification |
Mesh Size Specification | 6.6, 6.8, 7, 7.2, 8.4, 8.6, 8.8, 9, 9.2, 9.4, 10.2, 10.6, 11.6 mm | Customizable to meet various gabion requirements |
Twisting Method | 3 twists, 5 twists, long or short pitch | Available in 3-twist, 5-twist, long or short twist patterns |
Operating Speed | Approx. 70 cycles/min | Actual speed varies based on mesh width and wire diameter |
Maximum Output | 320 m/hour | Theoretical maximum output, varies with operating conditions |
Motor Power | 15 KW × 1, 11 KW × 4 | 1 main motor and 4 auxiliary motors |
Auto Pause System | ✔ Yes / □ No | Stops automatically in case of fault or wire breakage |
Auto Lubrication System | ✔ Yes / □ No | Automatic lubrication to reduce maintenance needs |
Boundary Dimension | 9.79 × 1.40 × 3.07 m | Length × Width × Height |
Net Weight | 18.5 tons | Net weight (excluding packaging) |
CNC System | Self-developed electronic cam system | Customizable based on customer requirements |
4. Introduction to Gabion Mesh Machine Auxiliary Equipment
Equipment Name | Equipment Model | Function Description |
Cutting Machine | BWR-JW40A | Precisely cuts woven gabion mesh to specified sizes, ensuring accurate cut positions and neat edges; suitable for fixed-length cutting of various gabion specifications. |
Curling Machine | BWR-JB40A | Performs edge curling to enhance strength and stability, preventing wire loosening or scratching; facilitates splicing and fixing during installation. |
Spring Machine | BWR-JHB13B | Produces spring tubes with consistent specifications to match the mesh body, improving overall structural stability of gabion mesh. |
