5-Axis Gabion Basket Making Machine Optimal Efficiency SLW54A
Our product line extensively covers from light-duty to heavy-duty metal weaving equipment and technically spans the complete series from shuttle to shuttleless machines.
Building upon a heritage of precision machinery manufacturing and following a path of independent mechatronic innovation, the team has secured 36 patents and developed industry benchmark products, such as the "5-axis linkage gabion mesh production equipment.
1.Gabion basket making machine Modular Dragplate Design-Oone Machine, Multiple Products, Cost Effiency
Our gabion machines features modular dragplate technology, alloowing a single machine to produce various product types by simply switching drag plates. This innovation offers:
Flexible production for quick market response.
Cost savings over 40% by reducing harware investment and optimizing space and maintenance.
Suitable upgrades with future-proof compatibility, minimizing waste and maximizing ROI.
2. Gabion basket making machine Smart Remote Maintenance-Uninterrupted Production Assurance
Our fully automated CNC gabion machine is equipped with intelligent remote maintenance systems, providing:
Remote diagnostics for precise issue identification
Quick problem resolution through remote adjustments and guided repairs.
Reduced operational costs and enhanced productivity with minimal downtime.
Data-driven management for optimized performance and long-term efficiency.
These advantages cater to clients' needs for flexibility, cost-effectiveness, and production stability.
3.Basic model specification Of Gabion basket making machine
Parameter | Specification | Description |
Weaving Width | 5400 mm | Standard effective weaving width |
Wire Diameter Range | 1.5–4.5 mm (varies by spec) | Varies depending on weaving range and specification |
Mesh Size Specification | 6.6, 6.8, 7, 7.2, 8.4, 8.6, 8.8, 9, 9.2, 9.4, 10.2, 10.6, 11.6 mm | Customizable to meet various gabion requirements |
Twisting Method | 3 twists, 5 twists, long or short pitch | Available in 3-twist, 5-twist, long or short twist patterns |
Operating Speed | Approx. 70 cycles/min | Actual speed varies based on mesh width and wire diameter |
Maximum Output | 320 m/hour | Theoretical maximum output, varies with operating conditions |
Motor Power | 15 KW × 1, 11 KW × 4 | 1 main motor and 4 auxiliary motors |
Auto Pause System | ✔ Yes / □ No | Stops automatically in case of fault or wire breakage |
Auto Lubrication System | ✔ Yes / □ No | Automatic lubrication to reduce maintenance needs |
Boundary Dimension | 9.79 × 1.40 × 3.07 m | Length × Width × Height |
Net Weight | 18.5 tons | Net weight (excluding packaging) |
CNC System | Self-developed electronic cam system | Customizable based on customer requirements |
4. Introduction to Gabion basket making machine
Equipment Name | Equipment Model | Function Description |
Cutting Machine | BWR-JW40A | Precisely cuts woven gabion mesh to specified sizes, ensuring accurate cut positions and neat edges; suitable for fixed-length cutting of various gabion specifications. |
Curling Machine | BWR-JB40A | Performs edge curling to enhance strength and stability, preventing wire loosening or scratching; facilitates splicing and fixing during installation. |
Spring Machine | BWR-JHB13B | Produces spring tubes with consistent specifications to match the mesh body, improving overall structural stability of gabion mesh. |

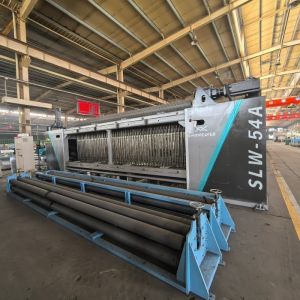

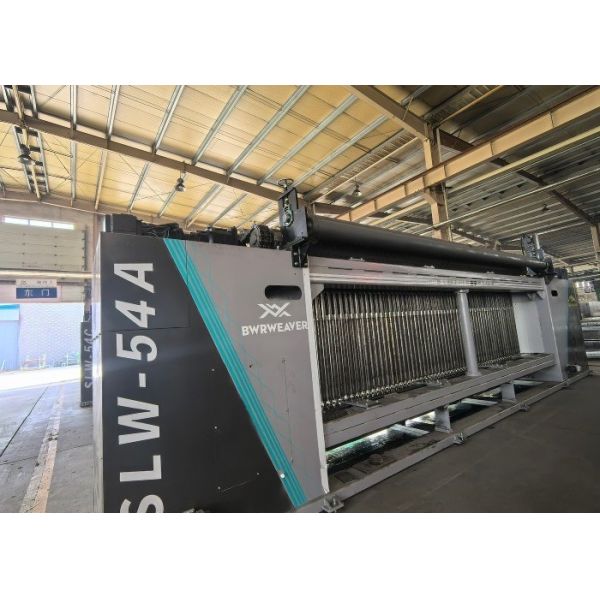

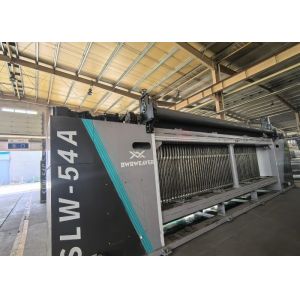

5.Gabion basket making machine detailed images:
|
|
